Straight curve switch pola 30° R3 / R4 Minitrix 14948 - N 1/160 code 80

Manufacturer : MINITRIX   |   Référence : TR14948
N
Prix unitaire TTC :
€ 37.90

Paiement en plusieurs fois sans frais:

En stock
Livré en 48h
From € 7.90
Paiement sécurisé

Résumé

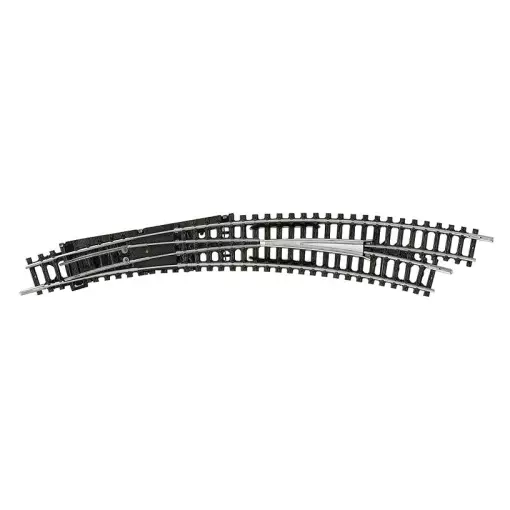

Polarized Minitrix straight-curve core switch in N: 1/160 scale with a angle of 30° under the reference 14948 for model railroading.

Curve radiusR3 329 mm / R2 362.6 mm.

Profiled in code 80

Black sleepers

With splice bars installed

Ability to install Minitrix motor 14935

Description

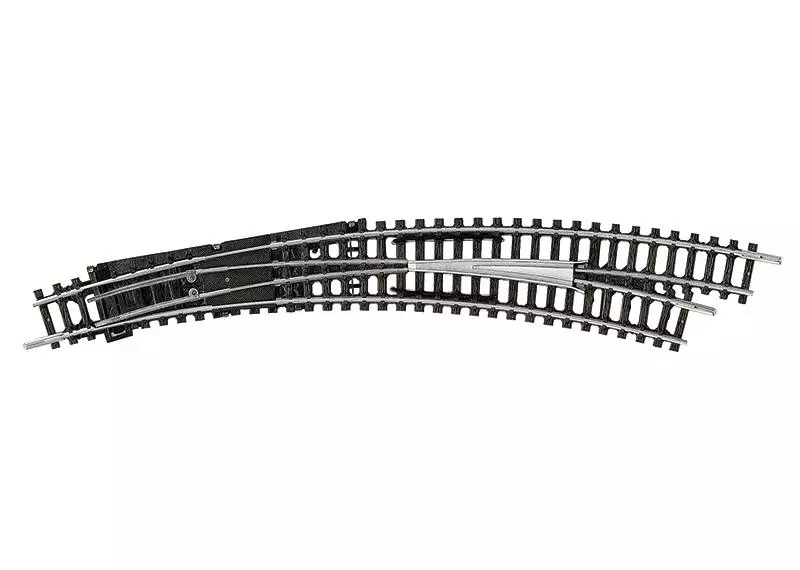

Minitrix offers a polarized core right-hand curved switch, in Scale N: 1/160 under part number 14948 whose curve angle is 30° with an R3 radius of 329 mm and an R4 of 362.6 mm.

A switch or TJD can be automated using the Minitrix 14935 and 14934 motors.

Minitrix switches have reliability of operation as well as polyvalence during assembly.

By offering normal as well as wound turnouts and also junction crossings, the Minitrix track range thus offers a device for every situation.

For standard as well as curved turnouts, there is a possible stop function of the train.There is a switch that feeds the track depending on the position of the switch. To activate it, you just have to remove with pliers the small metal "U" in the heart of the switch. Thus, if two trains arrive at the same time on the switch point, only one of them will pass according to the activation direction of the switch in order to avoid collisions. If the metal "U "s are left in place, then the switch will operate with current in both tracks.

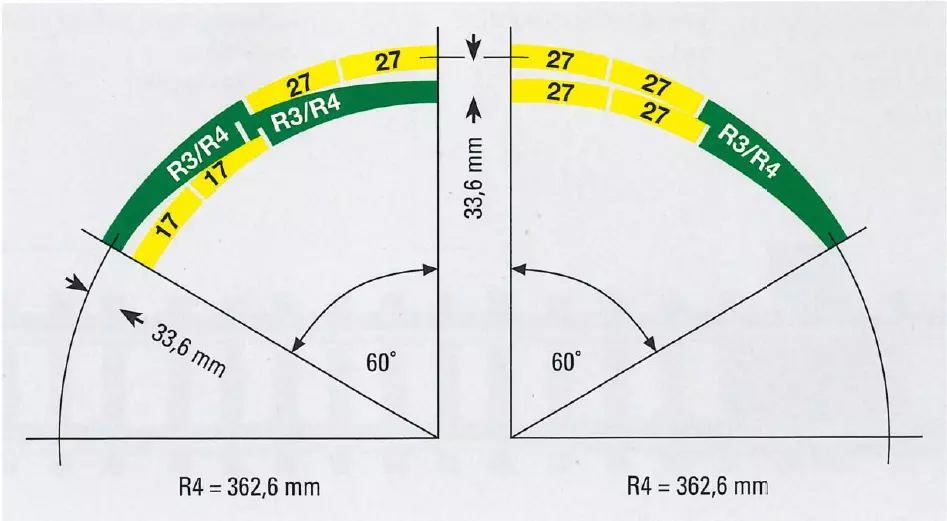

It is possible to make a parallel track using a minimum of space (33.6 mm center distance) simply by placing two switches opposite each other.

The N: 1/160 scale track from Minitrix offers a broad range of straight track as well as curved track, turnouts, and crossovers to provide a maximum opportunity to make a model train layout using a minimum amount of space.

The track sections are made from a stainless metal alloy ensuring reliability of contact between the wheel and rails.

The width of a Minitrix track with sleepers is16 mm, and the height of the section is 2.1 mm in code 80.

The Minitrix brand offers 14 turnouts, crossings as well as junction crossings:

-Left-hand turnout with a length of 104.2 mm, anangle of 24° and a R1 radius of 194.6 mm under the reference 14951.

-Right-hand switch with a length of 104.2 mm, an angle of 24° and a R1 radius of 194.6 mm under part number 14953.

-Double junction crossing (TJD) with a length of 104.2 mm, anangle of 30° and a R1 radius of 194.6 mm under part number 14968.

-Crossing of a length of 104.2 mm, anangle of 30° and a R1 radius of 194.6 mm under reference 14958.

-Crossing length of 129.8 mm, anangle of 15° and a R4 radius of 362.6 mm under reference 14973.

-Dual Junction Crossing (TJD) with a length of 129.8 mm, anangle of 15° and a R4 radius of 362.6 mm under part number 14960.

-Left-hand switch with a length of 112.6 mm, an angle of 15° and a R4 radius of 362.6 mm under part number 14954.

-Right-hand switch with a length of 112.6 mm, an angle of 15° and a R4 radius of 362.6 mm under part number 14955.

-Left-handed switch with a polarized core tip with a length of 112.6 mm, anangle of 15° and a R4 radius of 362.6 mm under part number 14938.

-Right-hand switchwith polarized heart tip with a length of 112.6 mm, anangle of 15° and a R4 ray of 362.6 mm under part number 14939.

-Left curvedneedle of 42° and R1 / R2 radius of 194.6 / 228.2 mm under part number 14956.

-Right curvedneedle of 42° and R1 / R2 radii of 194.6 / 228.2 mm under part number 14957.

-Leftcurve switch of 30° and R3 / R4 rods of 329 / 362.6 mm under part number 14947.

-Rightcurve switch of 30° and R3 / R4 rods of 329 / 362.6 mm under part number 14948.

Easy to install,Minitrix turnouts comewith pre-installed fishplates for joining two rails.

For fastening, the Minitrix brand offers metal clips (optional) under part number 66528.

For permanent installation, there are screws as well as fastening nails in the Minitrix brand under part numbers 66548 / 66537.

The metal and plastic rails sold separately are under part numbers 66525 / 66539.

The Minitrix brand offers a gauge for its tracks under part number 66600 in order to make an accurate grid plan.

Fiche technique

Angle ( degrees )
30°
Track code
80
Scale
N : 1/160
Point of heart of the switch
Plastic
