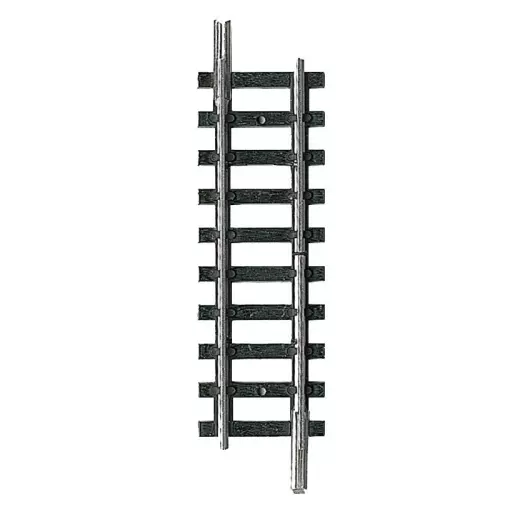

Minitrix offers a straight sectioning track to scale N: 1/160th under reference 14982 length 50 mm.
The track at scale N : 1/160th from the brand Minitrix offers a wide range of straight track as well as curved track, switches and crossings to offer a maximum possibility to build a model train layout using a minimum amount of space.
The track sections are made from a rust-free metal alloy guaranteeing reliable contact between the wheel and the rails.
The width of a Minitrix track with sleepers is 16 mm, and the height of the profile is 2.1 mm in code 80.
The Minitrix brand offers various elements enabling you to manage the power supply to your miniature network:
- The 1-pole connection terminal, part number 66519.
- One curved supply rail R1 194.6 mm, 30°, reference 14972.
- One contact rail 50 mm, with double contact system, reference 14979.
- One contact rail with magnetic switch, 50 mm, reference 14980.
- One straight rail with device anti-parasite, 104.2 mm, reference 14990.
- One straight sectioning rail, 50 mm, reference 14982.
- One curved sectioning rail R1 194.6 mm, 24°, reference 14984.
- One sectioning curve rail R2 228.2 mm, 24°, reference 14986.
For each radius that follow each other, the curves are 33.6 mm apart.
Easy to install, Minitrix rails are supplied with fishplates already installed enabling the junction between two rails to be made.
For fixing, the Minitrix brand offers metal clips (optional) under reference 66528.
For permanent installation, there are screws as well as fixing nails in the Minitrix brand under references 66548 / 66537.
The metal plates and plastic plates sold separately are under references 66525 / 66539.
The brand Minitrix offers a gabarit for its tracks under reference 66600 in order to make an accurate network plan.
>
