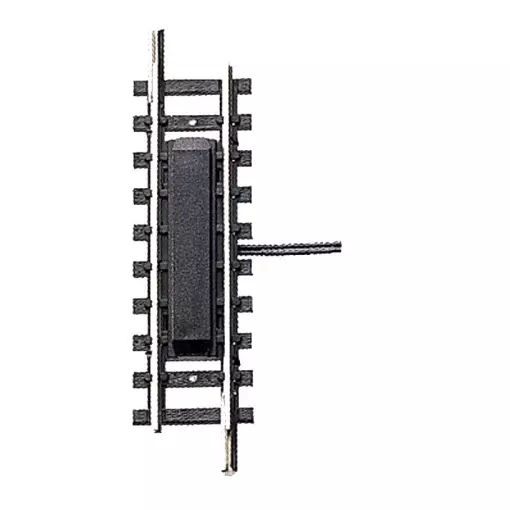

Straight contact track with magnetic switchMinitrix to scale N: 1/160 of length 50 mm under part number 14980.
Profiled in code 80.
With splints installed.
Minitrix offers a straight contact rail with magnetic switch in N scale: 1/160 under the reference 14980 length 50mm, code 80.
Reliable contact due to the double contact system.The switching operation (sending information) will be triggered by at least two parallel metal wheels and not by plastic wheels.
The N: 1/160 scale track from Minitrix offers a broad range of straight track as well as curved track, switches and crossovers to provide a maximum possibility to build up a model train layout using a minimum space.
The track sections are made from a stainless metal alloy ensuring reliability of contact between the wheel and rails.
The width of a Minitrix track with sleepers is16 mm, and the height of the section is 2.1 mm in code 80.
The Minitrix brand offers various components that allow you to manage the power supply of your miniature network:
- The 1-pole connection terminal, part number 66519.
- One curved power rail R1 194.6 mm, 30°, part number 14972.
- One contact rail 50 mm, with dual contact system, part number 14979.
- One contact rail with magnetic switch, 50 mm, part number 14980.
- One straight rail with interference suppressor device, 104.2 mm, part number 14990.
- One straight sectioning rail, 50 mm, part number 14982.
- One curved sectioning rail R1 194.6 mm, 24°, part number 14984.
- One sectioning curve rail R2 228.2 mm, 24°, part number 14986.
For each radius that follow each other, the curves are spaced 33.6 mm apart.
Easy to install, Minitrix rails comewith pre-installed splice bars that allow two rails to be joined.
For fastening, the Minitrix brand offers metal clips (optional) under part number 66528.
For permanent installation, there are screws as well as fastening nails in the Minitrix brand under part numbers 66548 / 66537.
The metal and plastic rails sold separately are under part numbers 66525 / 66539.
The Minitrix brand offers a gauge for its tracks under part number 66600 in order to make an accurate grid plan.
|Scale||N : 1/160|
|Length ( in mm )||50|
