Name: G1 Straight Track, 230 mm - ROCO 42410 - HO 1/87 - Code 83
Brand: ROCO
SKU: RO42410
Price: 2.99 EUR
Availability: InStock

G1 Straight Track, 230 mm - ROCO 42410 - HO 1/87 - Code 83

Brand : ROCO | Référence : RO42410

HO : 1/87 2R

Prix unitaire TTC :

€ 2.99

Paiement en plusieurs fois:

In stock

Delivered within 48h

From € 4.99

Secure Payment

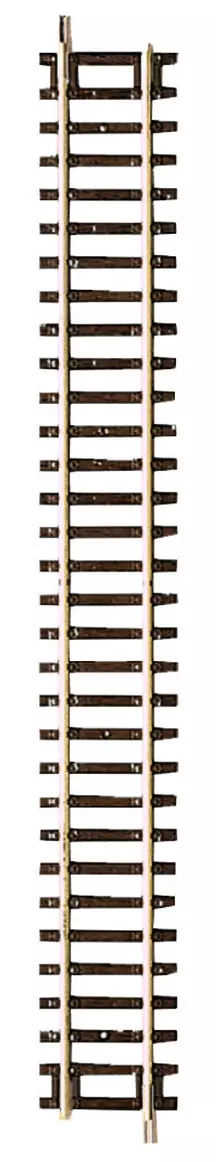

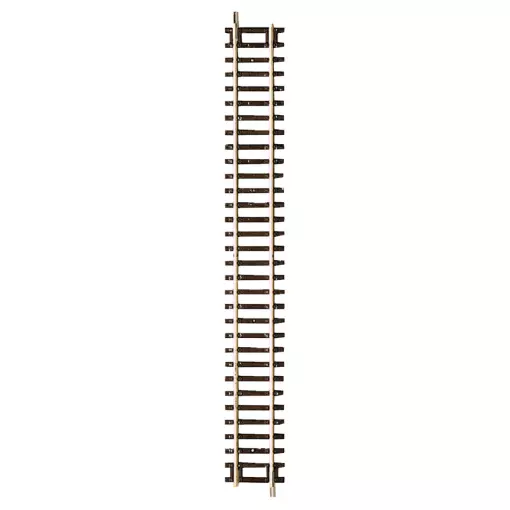

A Rail Straight G1 under the reference 42410 from the manufacturer ROCO.

Description

Additional features:

Equipped with fishplates & Rail profiles are made of maillechort (copper and brass alloy) allowing easy maintenance, longer life and reliable electrical continuity of the track.
2-rail system, Direct Current with ballast.
The junction between 2 rails is discrete.
Height of rail profile : 2.1 mm in code 83

Find all the track WITHOUT soft ballast from the manufacturer ROCO :

Rail Straight:

A Rail flexible F4, wooden sleeper, 920mm, under part number 42400.
One Rail flexible F4, concrete sleeper, 920mm, under reference 42401.
One Rail straight F4, timber sleeper, 920mm, under reference 42406.
One Rail straight G1, wooden sleeper, 230mm, under reference 42410.
One Rail straight DG1, wooden sleeper, 119mm, under reference 42411.
One Rail straight G1/2, wooden sleeper, 115mm, under reference 42412.
One Rail straight G1/4, wooden sleeper, 57.5mm, under reference 42413.

Special straight rails:

A Rail uncoupling G1/2, wooden crossbar, 115mm, under reference 42419.
One Feed rail G1/2, wooden sleeper, 115mm, under reference 42421.

Curved rails:

One Curved rail, R2 358mm, 30°, under reference 42422.
One Curved rail, R3 419.6mm, 30°, under reference 42423.
One Curved rail, R4 481.2mm, 30°, under reference 42424.
One Curved rail, R5 542.8mm, 30°, under reference 42425.
One Curved rail, R6 604.4mm, 30°, under reference 42426.
One Curved rail, R9 826.4mm, 15°, under reference 42427.
One Curved rail, R2 ¼ 358mm, 7.5°, under reference 42408.
One Curved rail, R3 ¼ 419.6mm, 7.5°, under reference 42409.
One Curved rail, R10 888mm, 15°, under reference 42428.
One Curved rail, R20 1962mm, 5°, under reference 42430.

Right Turnouts:

One Left Turnout Wl15, R 873.5mm, 15°,under reference 42440.
A Right Turnout Wr15, R 873.5mm, 15°, under reference 42441.
A Left Turnout Wl10, long, R 1946mm, 10°, under reference 42488.
One Right Turnout Wr10, long, R 1946mm, 10°, under reference 42489.

Curved Turnouts:

One Left Curved Turnout BWl2/3 under reference 42464.
A Right Curved Switch BWr2/3 under part number 42465.
One Left curved switch BWl5/6 under reference 42470.
A Right-hand curved switchBWr5/6 under reference 42471.
A Left-hand curved switch BWl3/4 under reference 42472.
One Right-hand curved switch BWr3/4 under reference 42473.
One Left-hand curved switch, long, BWl9/10 under reference 42476.

Crossing:

One Traversée Jonction Simple (TJS) EKW15,15° & R 531mm, 230mm under reference 42448.
One Traversée Jonction Double (TJD) EKW15,15° & R 531mm, 230mm under reference 42451.
An Asymmetrical Triple Switch DWW15, 15° & R 873.5mm, 287.5mm under reference 42454.
One Traversée Jonction Simple (TJS) EKW10,10° & R 959mm, 345mm under reference 42493.
One Twin Junction Crossing (TJD) DKW10,10° & R 959mm, 345mm under reference 42496.
One Standard Crossing K15, 230mm & 15°, under reference 42497.
One Crossing for double track junction K30, 119mm & 30°, under reference 42498

Track accessories:

One box of 12 Endsof wooden crossbarsunder reference 42600.
One box of 12 Extremities of concrete sleepers under reference 42601.
One bag of 400 short nails, 11.5mm, under reference 10000.
One bag of 500 nails long, 15mm, under reference 10001.
One Holder under reference 42267.
One Unhitching device under reference 40292.

Accessories for Turnouts:

One Under-table turnout motor, under reference 10030.
One Left turnout motor, under reference 40295.
One Right turnout motor, under reference 40296.

Technical sheet

Track code

Scale

HO : 1/87

Material

Plastic

Operating system

2 Rails - Direct current

Length (mm)

230

Manufacturer : ROCO

ROCO : Train, locomotive, wagon, passenger car, rail and switch HO and HOe scales from the ROCO brand.

Jura Modélisme offers locomotives, passenger cars, freight cars, rails and other track accessories from the ROCO brand in 1:87th scale. Discover the French locomotives and other SNCF rolling stock.

Find all the rail products, turnouts, fishplates, turnout motors from the Géoline and Rocoline ranges.
Discover the ROCO brand products for model trains and model railway networks.

View products from manufacturer ROCO
