TR14919

Fabricant : MINITRIX

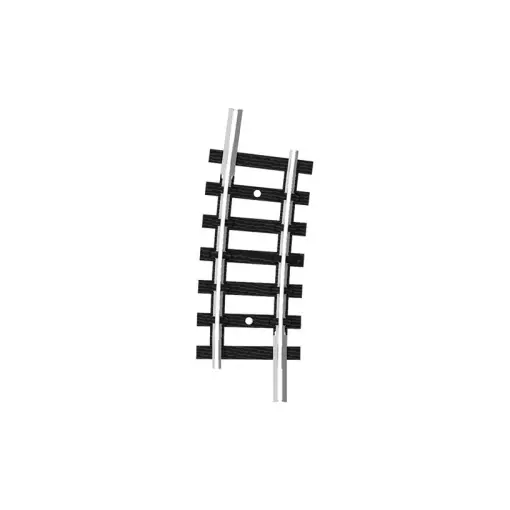

Curved track elementMinitrix in N: 1/160 scale with a radius R2a of 261.8 mm and an angle of 7.5° under reference 14919 for model railroading.

Profiled in code 80.

Black sleepers.

With installed fishplates.

More details

MINITRIX
MINITRIX Produit de la marque MINITRIX pour le modélisme ferroviaire et la création de diorama. Train, locomotive, wagon, voiture voyageur, rail et aiguillage échelle N de la marque MINITRIX.

En savoir plus

2.492,49 € tax incl.

En stock - Livré en 48h

  • France : à partir de 7,90 €
    (Franco à partir de 199€)

    Europe : à partir de 14,90 €
    (Franco à partir de 399€)

    Suisse : à partir de 14,90 €
    (Franco à partir de 399€)

Add to wishlist

You must be logged

Minitrix offers a small N: 1/160 scale curved track under the 14919 brand with a angle of 7.5° and a radius of 261.8 mm.

The N: 1/160 scale track from Minitrix offers a broad range of straight track as well as curved track, switches and crossovers to provide a maximum possibility to build a model train layout using a minimum amount of space.

The track sections are made from a stainless metal alloy ensuring reliable contact between the wheel and rails.

The width of a Minitrix track with sleepers is16 mm, and the profile height is 2.1 mm in code 80.

The Minitrix brand offers 8 different radii with a total of 16 curved rails:

-Large curved rail R1 with a radius of 194.6 mm and aangle of 30°under part number 14912.

-Middle rail curved R1 of a radius of 194.6 mm and anangle of 24° under part number 14914.

-Small curved rail R1 with a radius of 194.6 mm and anangle of 6° under part number 14916.

-Large curved rail R2 with a radius of 228.2 mm and anangle of 30° under part number 14922.

-Medium curved rail R2 of a radius of 228.2 mm and anangle of 24° under part number 14924.

-Small curved rail R2 of a radius of 228.2 mm and anangle of 6° under part number 14926.

-Large curved rail R2a with a radius of 261.8 mm and anangle of 30° under part number 14910.

-Medium curved rail R2a with a radius of 261.8 mm and anangle of 15° under part number 14911.

-Small curved rail R2a with a radius of 261.8 mmand anangle of 7.5° under part number 14919.

-Large curved rail R2b with a radius of 295.4 mm and anangle of 30° under part number 14920.

-Medium curved rail R2b with a radius of 295.4 mm and anangle of 15° under part number 14921.

-Small curved rail R2b with a radius of 295.4 mmand anangle of 7.5° under part number 14929.

-Curved rail R3 with a radius of 329 mm and anangle of 15° under part number 14917.

-Curved rail R4 with a radius of 362.6 mm and anangle of 15° under part number 14927.

-Curved rail R5 with a radius of 492.6 mm and anangle of 15° under part number 14918.

-Curved rail R6 with a radius of 526.2 mm and anangle of 15° under part number 14928.

There is also the flexible track that can be used in a curved rail with a length of 730 mm under part number 14901.

For each radius that follow each other, the curves are spaced 33.6 mm apart.

Easy to install,Minitrix rails comewith pre-installed splice bars that allow you to make the connection between two rails.

For attachment, the Minitrix brand offers metal clips (optional) under part number 66528.

For permanent installation, there are screws as well as fastening nails in the Minitrix brand under part numbers 66548 / 66537.

The metal and plastic rails sold separately are under part numbers 66525 / 66539.

The Minitrix brand offers a gauge for its tracks under part number 66600 in order to make an accurate grid plan.

Angle ( degrees ) 7,5°
Track code 80
Scale N : 1/160
Material Plastic
Radius ( in mm ) R2a 261.8 mm
