Curved rail 30° Roco 42425 - R5 542,8 mm - HO : 1/87 - Code 83

Rail courbe R5 30° 542.8mm de rayon
Previous
  • Rail courbe R5 30° 542.8mm de rayon
  • Rail courbe R5 30° 542.8mm de rayon
  • Rail courbe R5 30° 542.8mm de rayon
Next

RO42425

Fabricant : ROCO

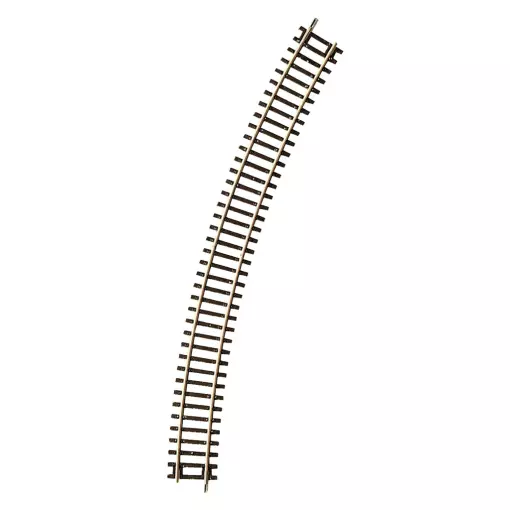

Large Rocoline 42425 curved rail with a R5 radius of 542.8 mm, a angle of 30° and alength of 282 mm for model railroading at HO 1/87 scale.

It takes 12 Roco 42425 curved rails to make a circle of 1085.6 mm diameter.

Roco track profile is made of
code 83.

More details

ROCO
ROCO Locomotive, locotracteur, wagons, voitures voyageur de la marque ROCO. Découvrez également les voies Rocoline et Géoline : rail, aiguillage et accessoires de voies ROCO.

En savoir plus

33,00 € tax incl.

En stock - Livré en 48h

  • France : à partir de 7,90 €
    (Franco à partir de 199€)

    Europe : à partir de 14,90 €
    (Franco à partir de 399€)

    Suisse : à partir de 14,90 €
    (Franco à partir de 399€)

Add to wishlist

You must be logged

The Roco 42425 large R5 curved track will allow you to make a 1085.6mm diameter track oval on your model train layout.

The Rocoline curved track range consists of 6 different radii numbered R2 through R6 and R9:

R2: 358 mm radius Roco 42422 30° angle.

R3: 419.6 mm radius Roco 42423 30° angle.

R4: 481.2 mm radius Roco 42424 30° angle.

R5: Rayon 542.8 mm Roco 42425 30° angle.
R6: Rayon 604.4 mm Roco 42426 30° angle.

R9: Rayon 826.4 mm Roco 42427 15° angle.

R21/4: Small R2 curved rail of 358 mm radius Roco 42408 7.5° angle (for use with Roco 42432/42433 turnouts).

R31/4: Small R3 curved rail of 419.6 mm rod Roco 42409 7.5° angle.

R10: 888 mm radius Roco 42428 15° angle (for use with 15° angle turnouts to make a parallel track).

R20: 1962 mm radius Roco 42430 5° angle (for use with 10° angle turnouts to make a parallel track).


The RocoLine track system is a so-called "2 Rails"power system operating in direct current in both analog and digital modes.


Discover the RocoLine track, which is replicated with heavy-duty plastic sleepers that perfectly mimic railroad rails.

These rails, will perfectly equip your model train layout and allow the running of your trains at Ho 1/87 scale .

The rail profile is made of maillechort, an alloy of copper and brass. This material has the particularity of being a very good electrical conductor. Moreover, unlike steel rails, it does not oxidize.



The connection of two RocoLine rails is made via the rail's joint bars.
Once connected,the junction between 2 rails is discreet.

To supply your tracks with analog, you can use the Roco rail reference 42421.

For digital operation, use the Roco connection cable reference 42613.

Angle ( degrees ) 30°
Track code 83
Scale HO : 1/87
Material Plastic
Radius ( in mm ) 542,8
Operating system 2 Rails - Direct Current
Length ( in mm ) 282
