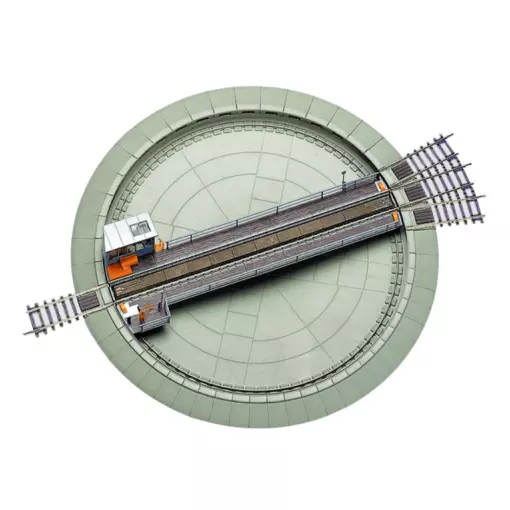

Roco 42615 locomotive swing bridge in HO 1/87th scale with integrated electric motor and control unit.
Suitable for all direct current 2 Track and centre conductor alternating current 3 Track NEM (European model railway standards) compliant tracks.
The platform length of 253 mm, corresponding to 22 m on the original model.
The minimum angle between two track exits is 9 degrees.
The swing bridge issupplied with spacers in divisions of 1°, 3°, 6° and 9°. As a result, any divisions from 9° upwards are possible in 1° steps between track outlets.
40 track outlets can be set up in total. The turntable is supplied with four track outlets for 2L =.
Further track outlets are supplied as Roco 42616 accessories, content: 4 2Rails track outlets.
The platform motor operates with a 14V AC supply voltage.
The turntable issupplied with a control device for selecting the direction of travel and turning movement.
When the turntable button is released, the turntable stops exactly at the next track output.
From a technical point of view, the turntable is prepared for a preselection control allowing direct selection of the desired track output. As with the original, two speeds can be selected on the ROCO model.
The running current is fed into the turntable. The operating voltage supply to the track outputs can be assigned using the control unit. This prevents the possible unintentional starting of a stopped locomotive when two track exits face each other.*
A five-pole 1 m cable (transformer control unit) and an eight-pole 2 m cable (turntable ECU) are supplied.
Mounting dimensions:
Aperture required for mounting: 280 mm.
Mounting depth measured from the top edge of the table: 50 mm.
Outside diameter of turntable without track exits: 307 mm.
Platform length: 253 mm.
Suitable for all locomotives with a wheelbase of up to 250 mm.
* When using the turntable in DCC (digital) drive mode it is necessary to use a digital reversing loop module.
