Single feedthrough TJS 12° Peco SL180 Insulfrog 249 mm code 75 - HO 1/87

Brand : PECO   |   Référence : PESL180
HO : 1/87 2R Insulfrog
Prix unitaire TTC :
€ 54.99

Paiement en plusieurs fois sans frais:

Bientôt de retour
From € 7.90

Résumé

Traversée Jonction Simple TJS code 75 Peco SL180 Insulfrog (coeur non polarisé) traverses marron imitation bois pour modélisme ferroviaire à l'échelle HO 1/87 ème.

Pointe de coeur du croisement en plastique.

Long 249 mm

Angle 12°

Description

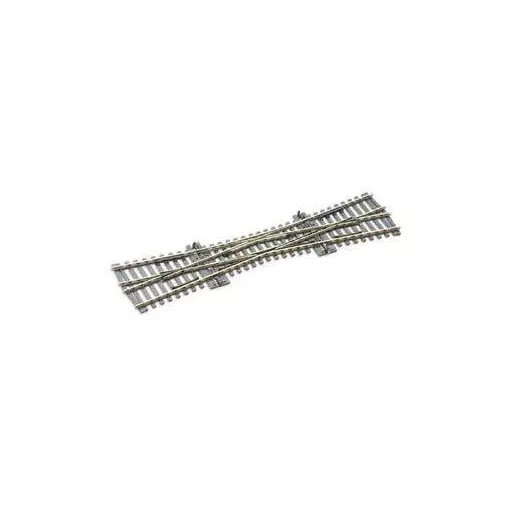

Track crossing Single Junction Crossing (SJC) code 75 Peco SL180 Insulfrog with a length of 249 mm, an angle of 12°.

The SJC is a crossing that allows track changes like a switch.

The track can only be changed on one side as long as a Peco SL190 Double Junction Crossing (TJD) allows the track to be changed on both sides.

To motorise a TJS or TJD, two motors are required.


The Peco brand of track offers a wide range of tracks for building a model railway layout.

The British company is known for its rails in code 100 and 75 in HO 1/87th scale.

The track sections are made from maillechort (an alloy of copper and brass), materials that offer very high electrical conductivity and do not oxidise (easier cleaning of the rails).

Peco's 1/87th scale HO turnouts are available in two technologies:Insulfrog and Electrofrog.

The Insulfrog models have a plastic core point (and therefore not electrically powered). These turnouts are recommended for model railway systems in analogue operation (conventional power supply via a transformer).

The Electrofrog models have a metallic core point (allowing better current pick-up from the locomotives). As a result, at low speeds, the locomotives run more smoothly. These turnouts are recommended for model train networks in digital operation (power supply by digital control unit).

The points deflection system allows the turnout to be motorised with several types of motor:

A table-top motor reference Peco PL11 which is placed next to the turnout on the track plan.

An under-table motor reference Peco PL1000/PL1001 which is placed below the layout support for discreet installation.

Peco straight turnouts in HO 1/87th scale come in three lengths: short, medium and long.

Technical sheet

Angle (degrees)
12
Track code
75
Scale
HO : 1/87
Material
Plastic
Point at the heart of the switch
Plastic
Operating system
2 Rails - Direct current
Technology
Insulfrog
Length (mm)
249

Manufacturer : PECO

PECO: Rail and track, soft, rigid and flexible from the PECO brand. Switch, crossing, TJS, TJD, track box PECO. Rails PECO aux échelles 1 : 87 ème, 1 : 160 ème et 1 : 220 ème, 1 : 43 ème, 1 : 22 ème etc.

Jura Modélisme offers you the full range of track from the PECO brand. Discover flexible rails, rigid rails, turnouts, crossings, junction crossings in N, HO, O and 1 scales.The most common track codes are code 100, code 75 and code 83.

Discover the products of the PECO brand for model trains and model railway layouts.
